Din sized enclosure for Track (Din rail) / Screw mounting.

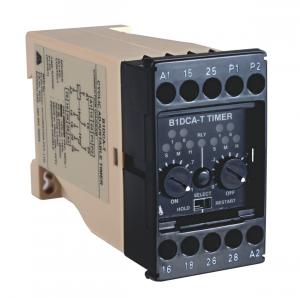

B1DCA-T : HOLD / RESTART facility during power fail conditions.
B1DCA-T : Auto / Manual switch for mode of operation
B1DCA-T : Program - enable / disable facility for tamper proof operation.
B1DCA-X, B1DCA-T : Independently selectable ON & OFF time.
SPP-T :Trips under phase missing, phase reversal or phase unbalance
In manual mode, terminals provided to connect to switch so as to manually switch ON and switch OFF load
Over-all: 45 X 75 X 116mm (W X H X D).
Lubricating system, DG Sets, MCC panels, Pump panels and many more...
Model Function Source Voltage Time Range Output
B1DCA-X Cyclic adjustable On-Off X-Version* 0.6 Secs to 60 Mins 2 c/o Relay
B1DCA-T Cyclic adjustable On-Off 110V AC / 240V AC 0.1 Secs to 10 Hrs 2 c/o Relay
B1DS Star-Delta 440V AC 0.6 Secs to 60 Secs #Transfer Time : 40mSec / 100mSec Settable 1 c/o star, 1 c/o delta
B1DH-Q Power Off-Delay 110V AC to 240V AC, 110V DC to 220V DC** 6secs to 60secs 2 c/o Relay
B1DF On-Delay with instant contact 110V AC / 240V AC 0.3secs to 30mins 1 c/o On-Delay, 1 c/o Instant
SPP-T Phase Unbalance, Phase Failure, Negative Phase Sequence Monitor & Control 415V AC (self powered) ##TDT-factory set 1 c/o Relay
BID-FR Forward/Reverse with Pause Time 240V AC Forward & Reverse 0.6Min to 6Min Delay 0.1 Min to 1Min 1 c/o rated for 5A @ 250V AC / 28V DC resistive load
B1DCA-T Cyclic adjustable On-Off 24V DC / 12V DC 0.1Secs to 10 Hrs 2 c/o Relay
B1DCA-T Cyclic adjustable On-Off '240V AC / 110V AC / 12V DC 0.24 Secs to 24 Hrs 2 c/o Relay
B1DH-Q Power-Off Delay 110V AC to 240V AC, 110V DC to 220V DC** 0.6 Secs to 6 Secs 2 c/o Relay
B1DH-Q Power-Off Delay 24V DC** 6 Secs to 60 Secs 2 c/o Relay
B1DF On-Delay with instant contact 24V DC 0.3secs to 30mins 1 c/o On-Delay, 1 c/o Instant
